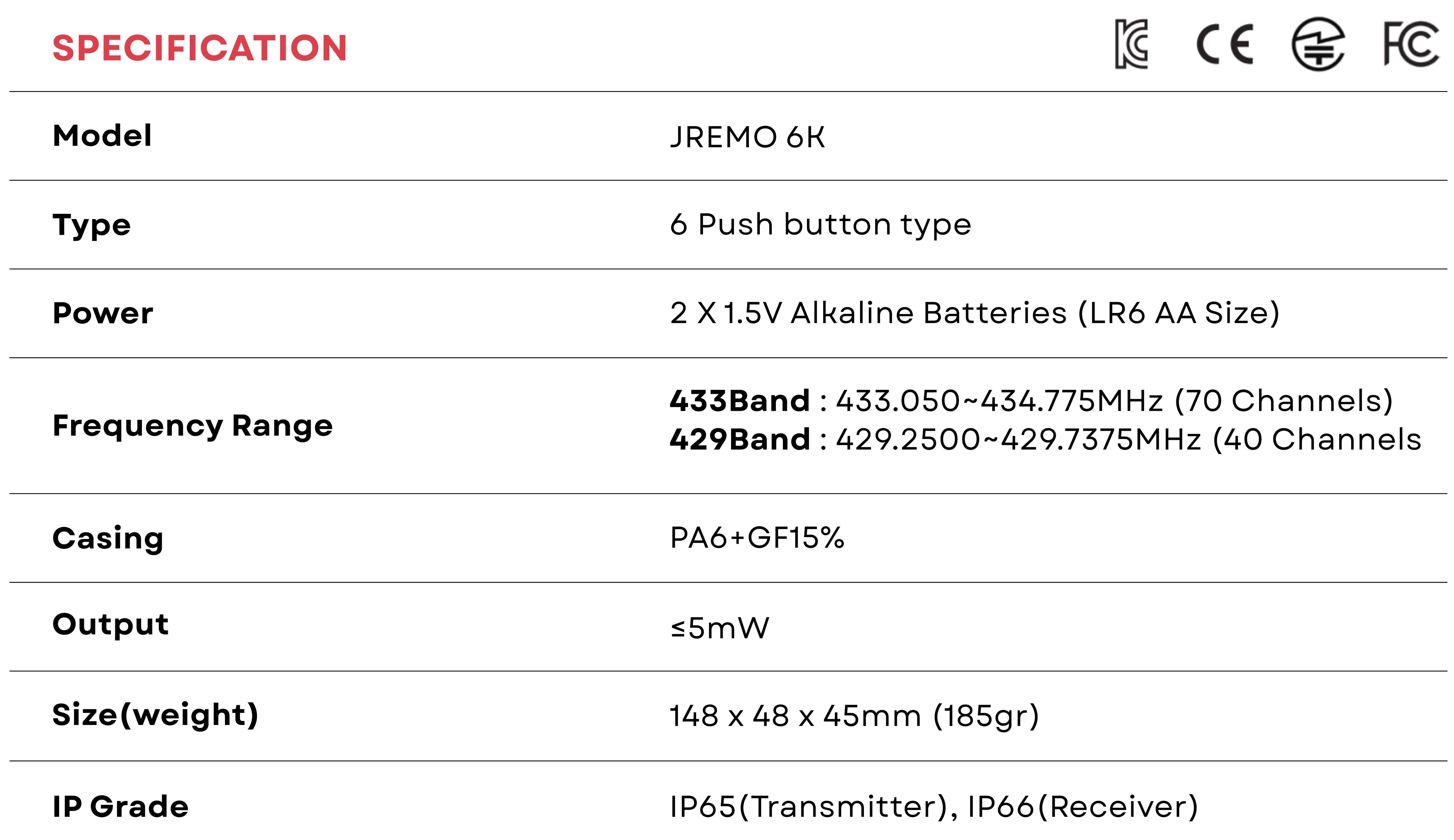

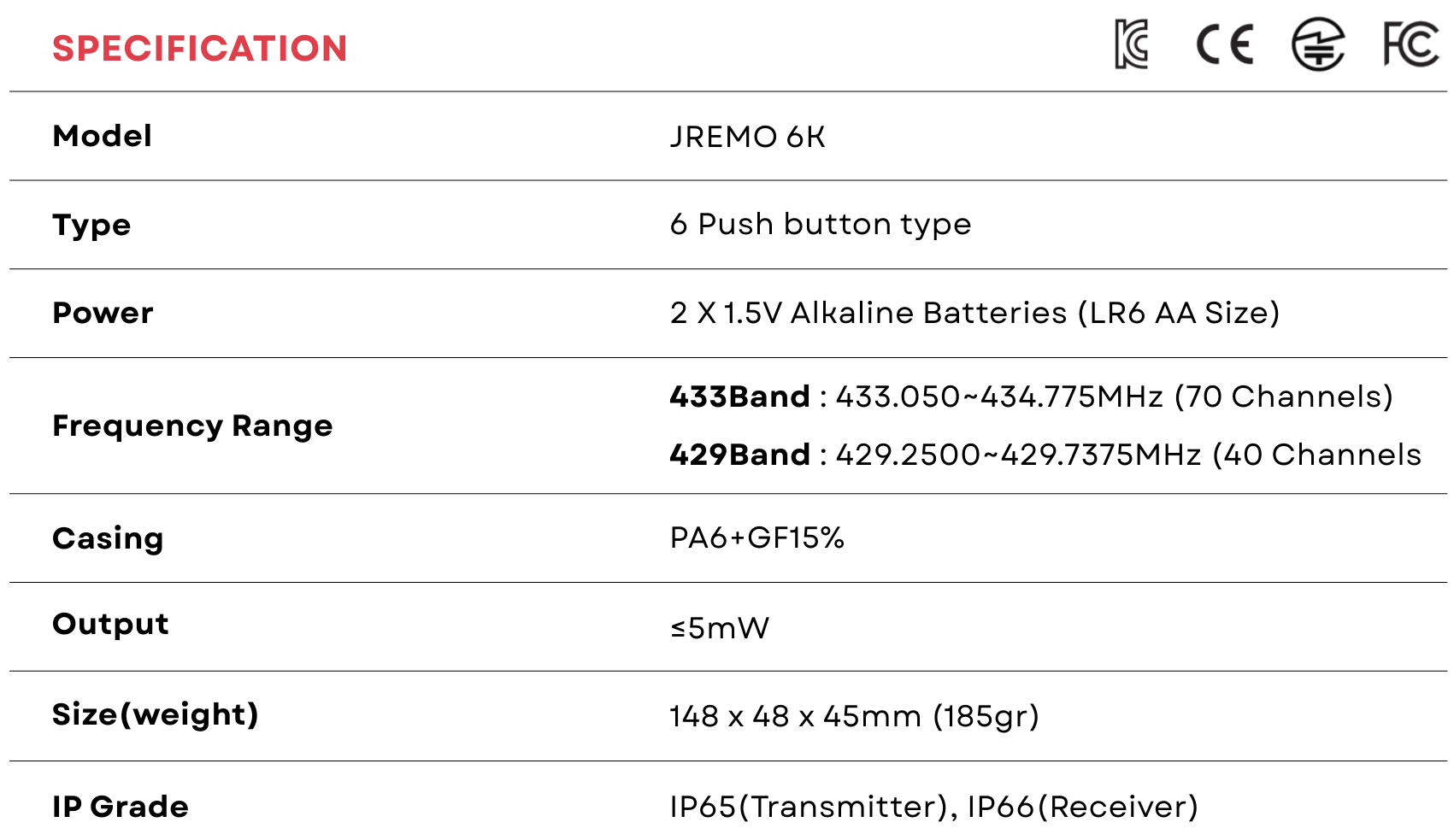

PRODUCT INFORMATION
| Model | JREMO 6K |
| Type | P. L. L |
| Power Supply | AA 1.5V battery x 2 EA |
| Frequency | 433MHz Band (70CH) |
| Material | PA6+Glass Fiber 15% |
| Color | Yellow(top), Black(bottom) |
| Weight | Approx. 185 Gr.(Batteries Incl.) |
| Protection | IP55 |

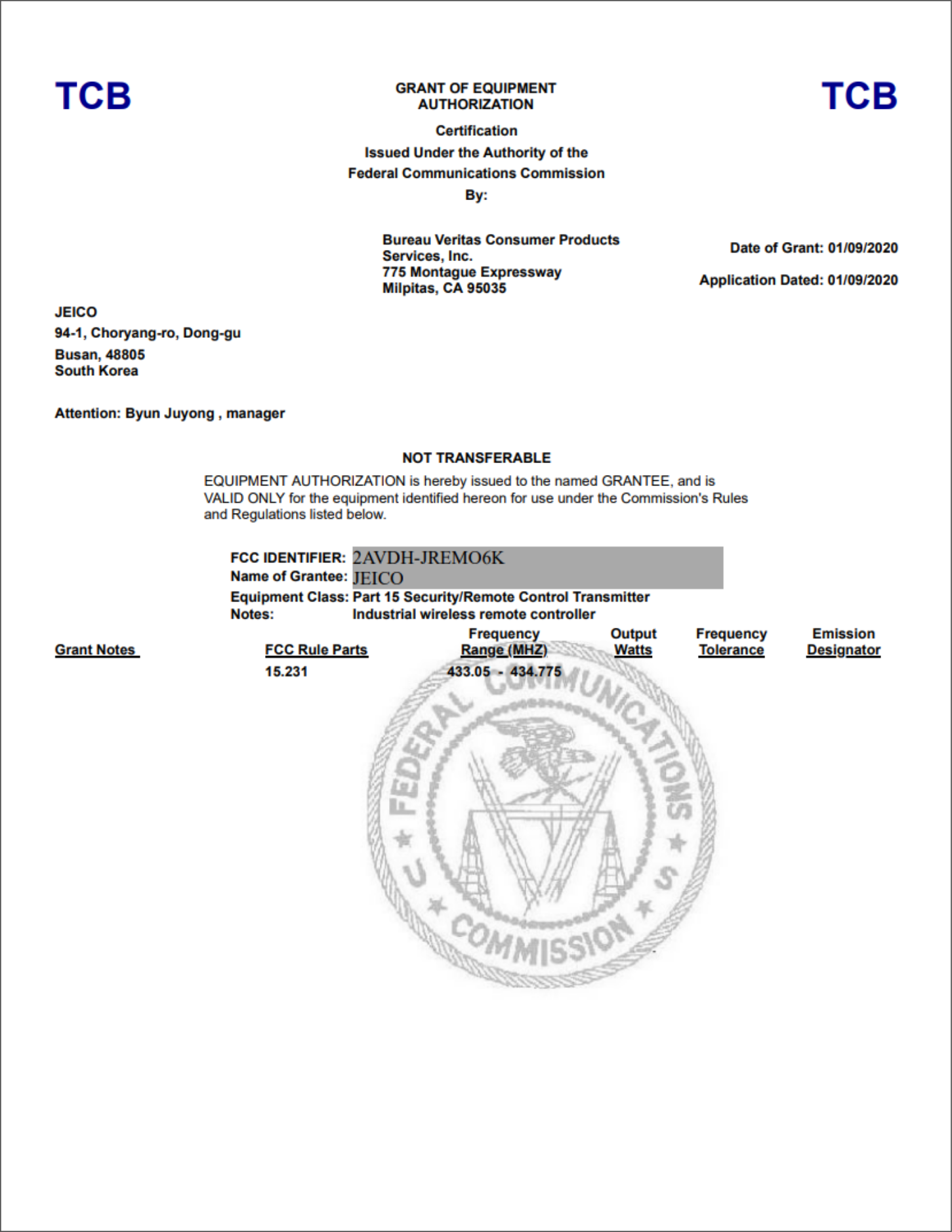

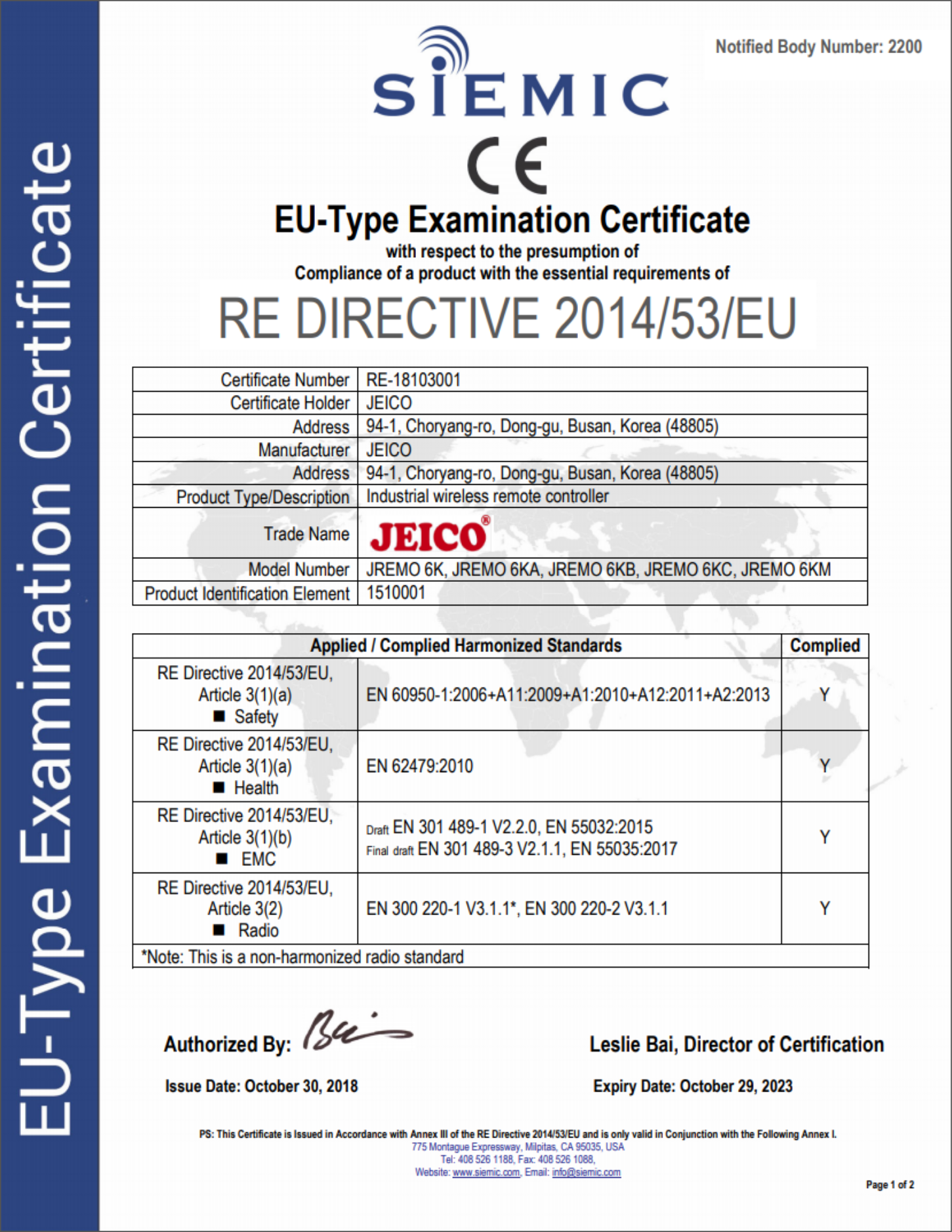

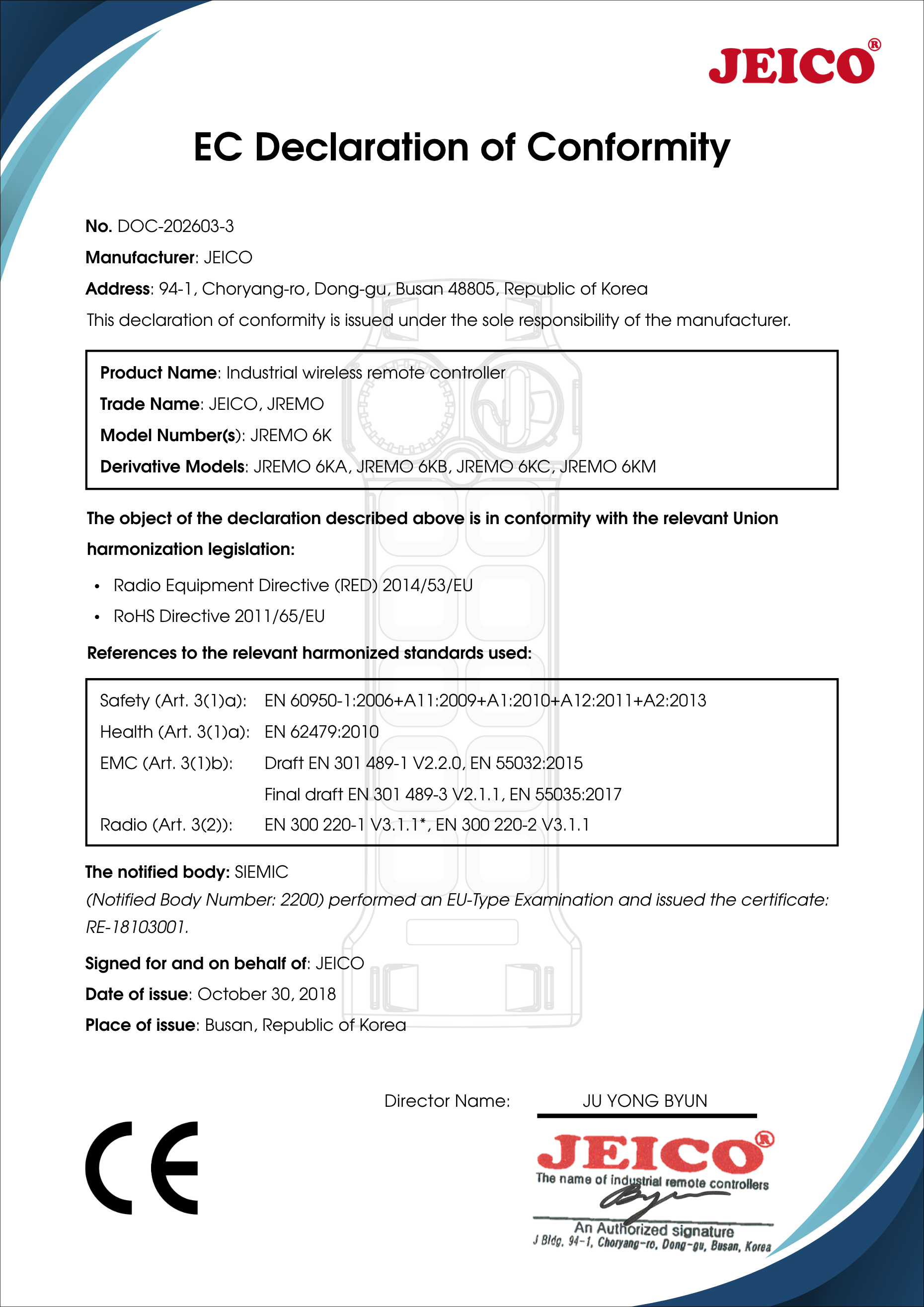

| Certificates |   |

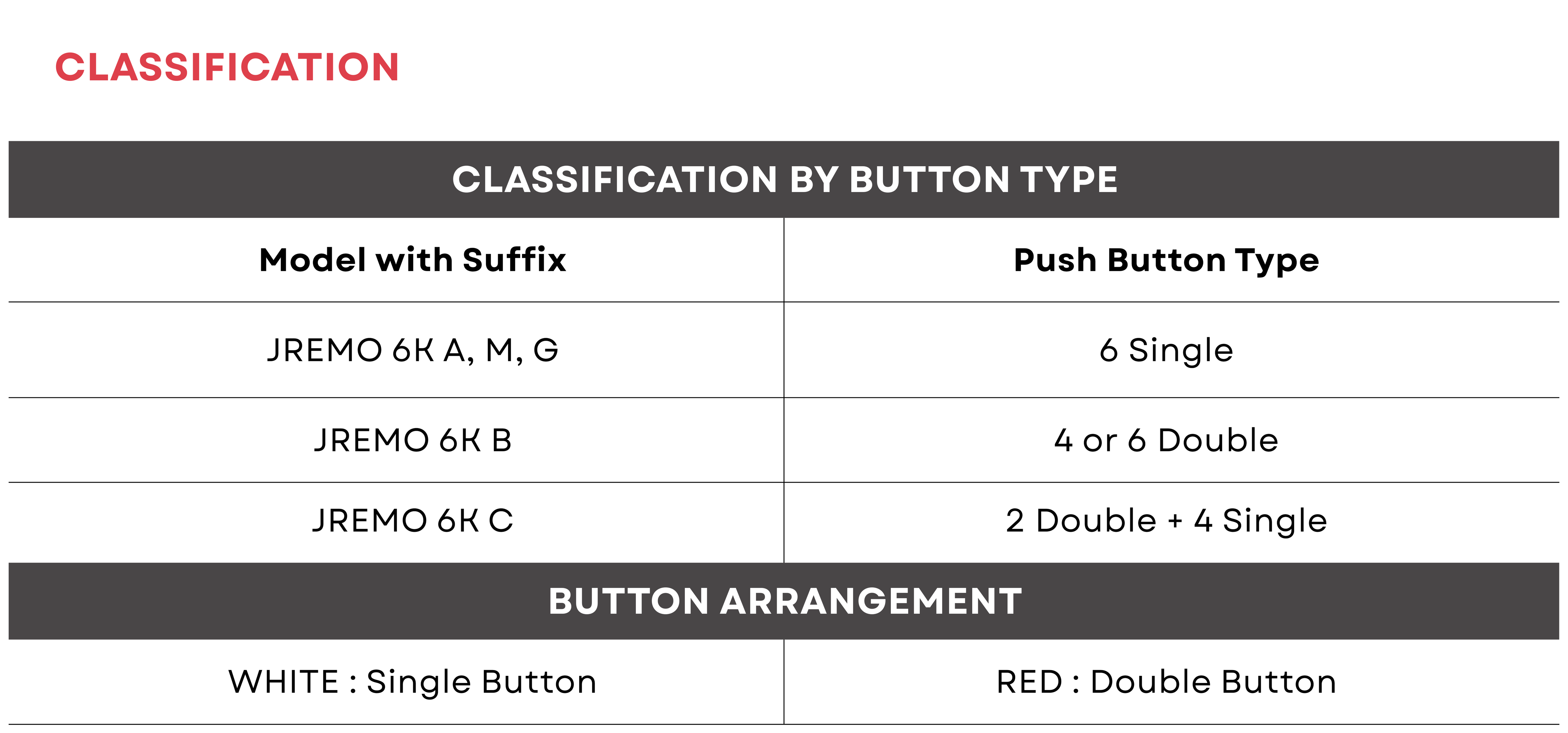

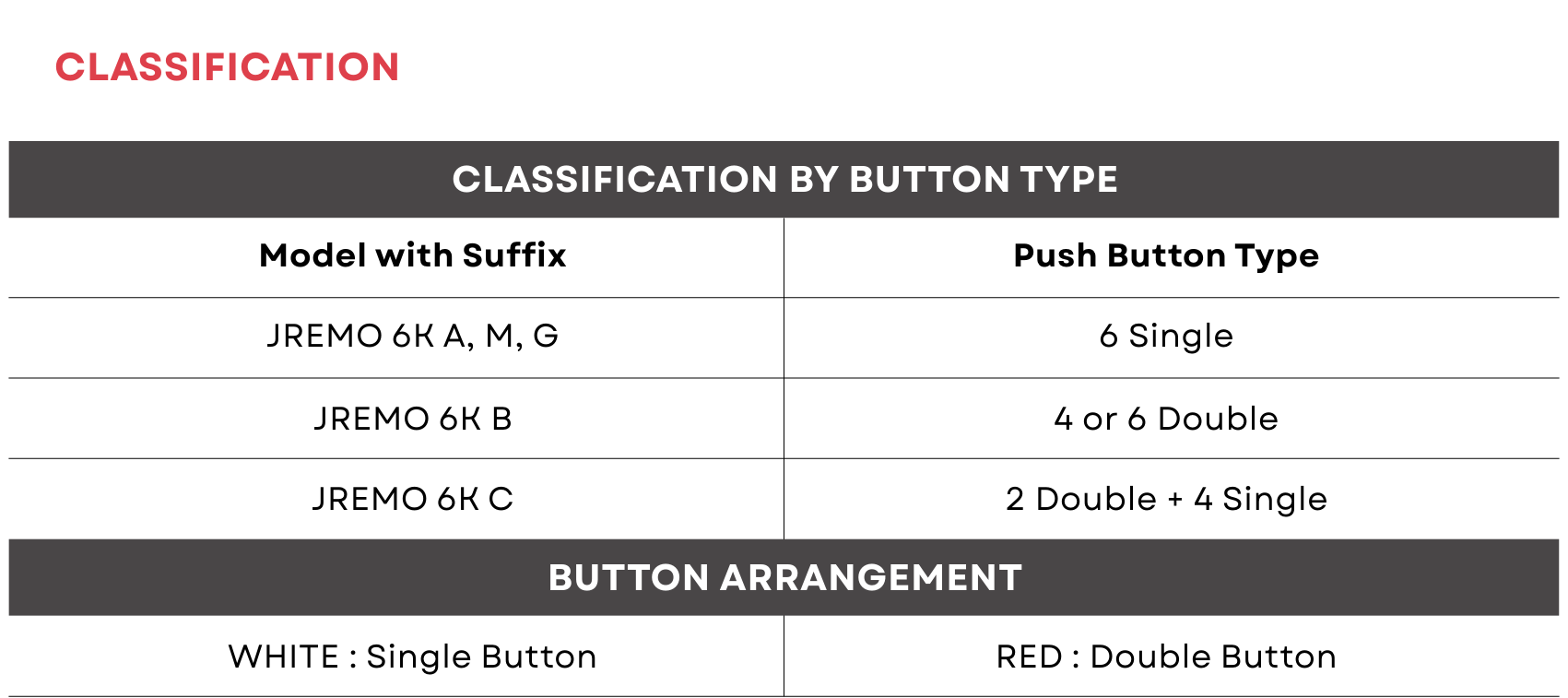

CLASSIFICATION
| Model with Suffix | Buttons Type |
| JREMO 6K A | 6 single-push buttons |
| JREMO 6K B | 4 to 6 Double push buttons |
| JREMO 6K C | 6 up and down creep-push buttons |

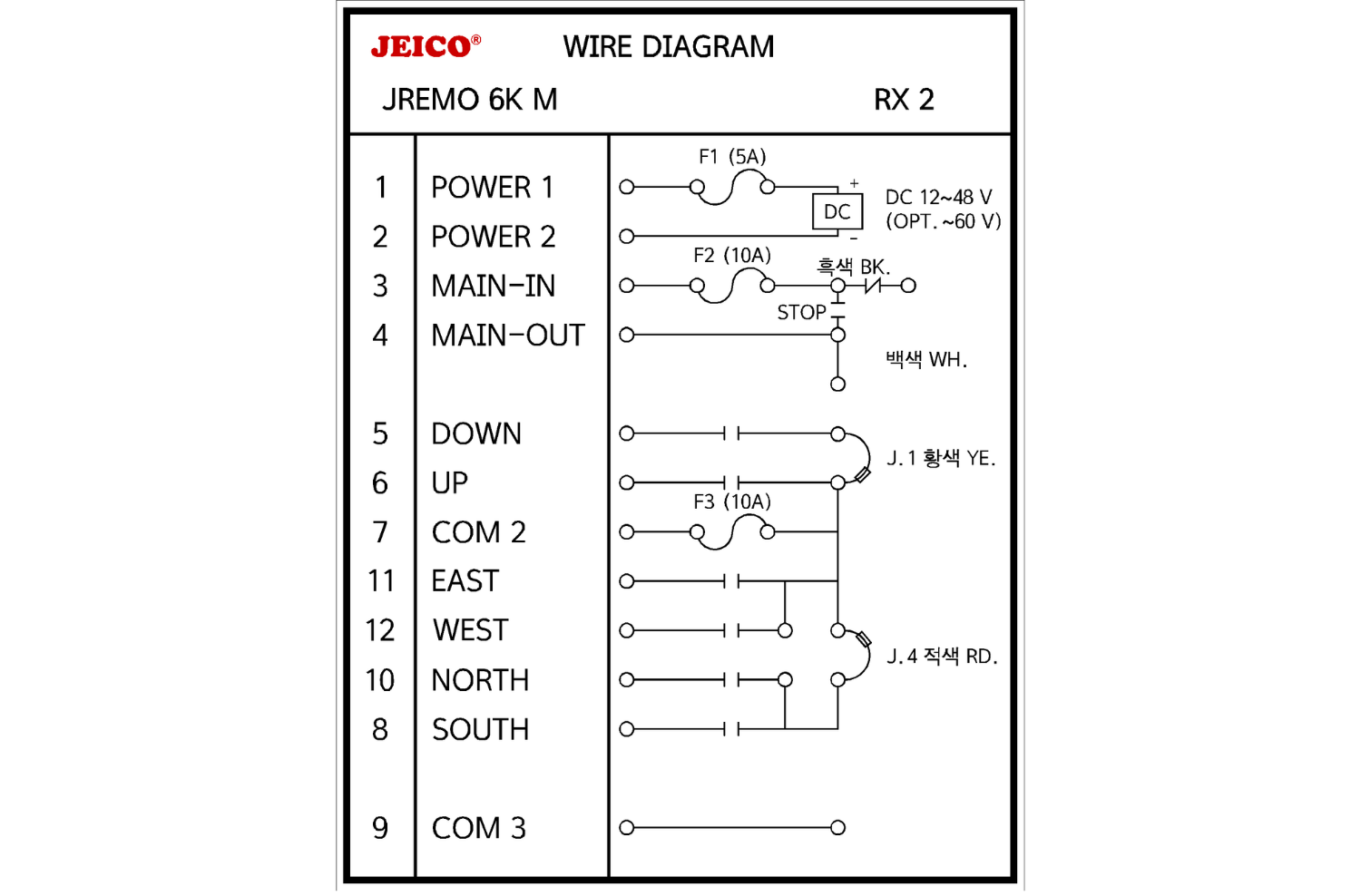

| JREMO 6K M | 6 single-push buttons for special DC for automobile, etc. |
| JREMO 6K FA | 4 single-push buttons for hoists |
| JREMO 6K FB | 4 double-push buttons for hoists |
| JREMO 6K FC | 4 up and down creep-push buttons for hoists |
| JREMO 6K FM | 4 single-push buttons for special DC for automobile, etc. |
| Receiver Size | JREMO RX 2 |
| Standard | AC (110~440V) |
| Options | AC48V, AC380V, DC12~40(24~60)V |

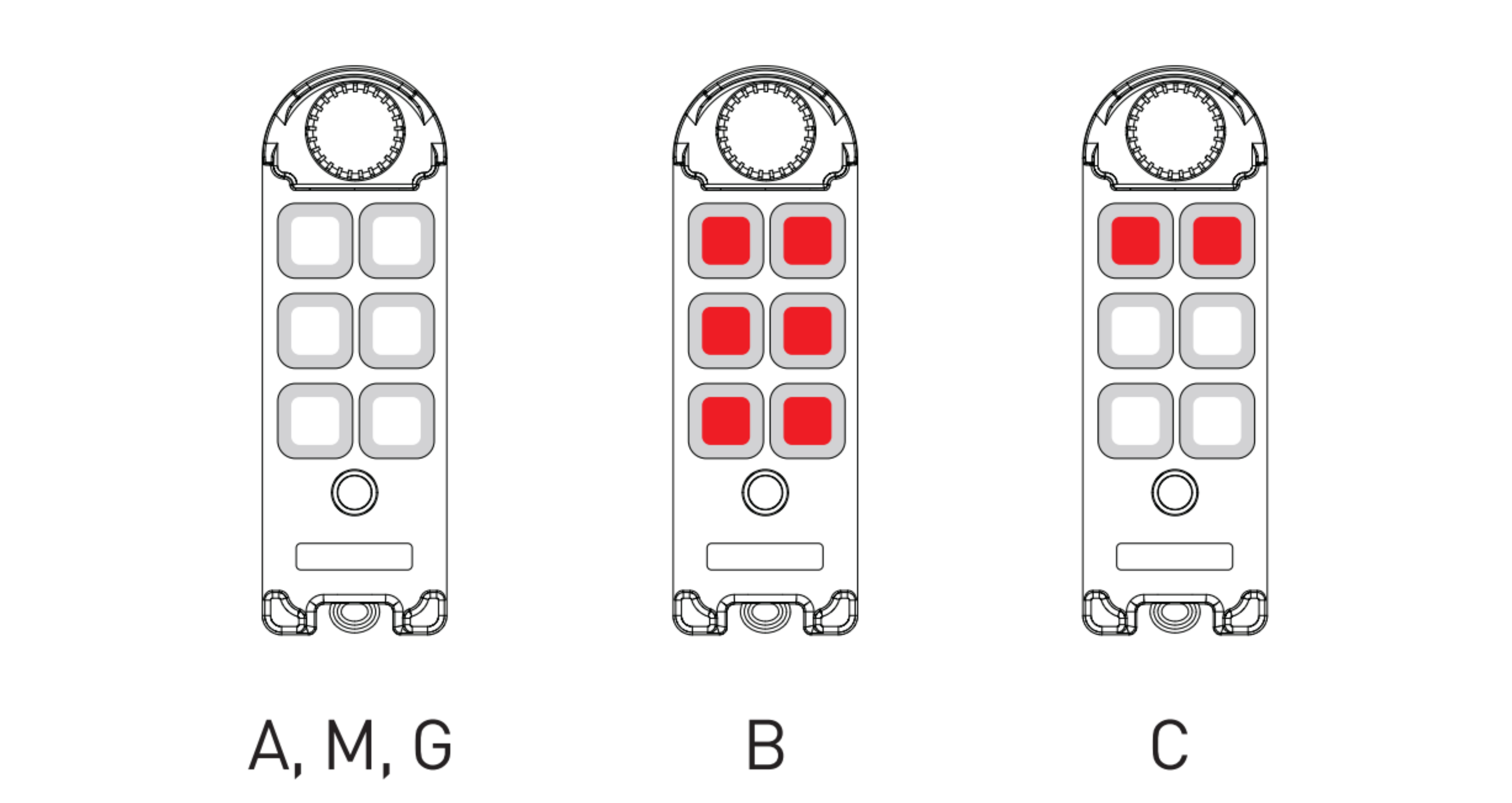

BUTTON ARRANGEMENT

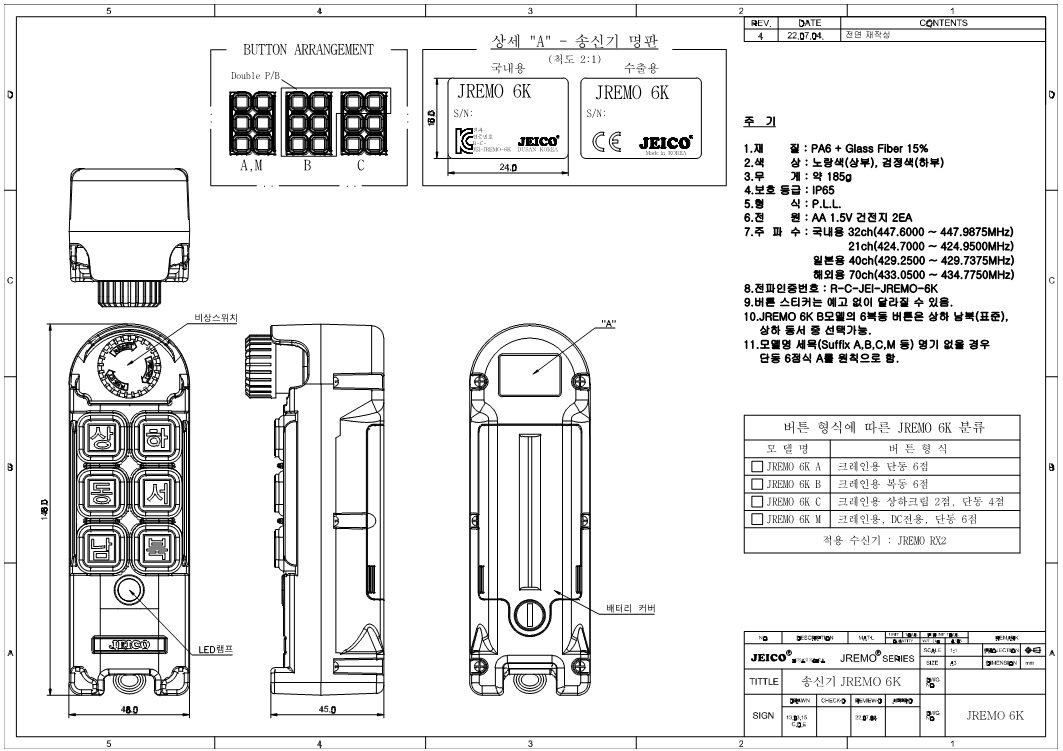

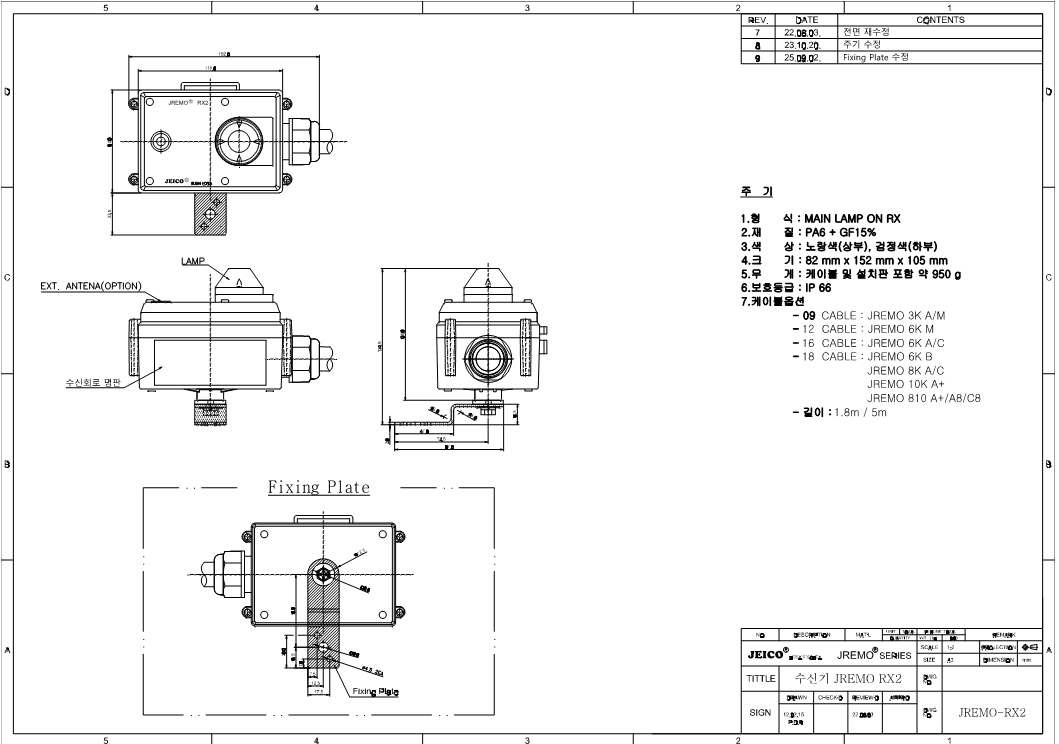

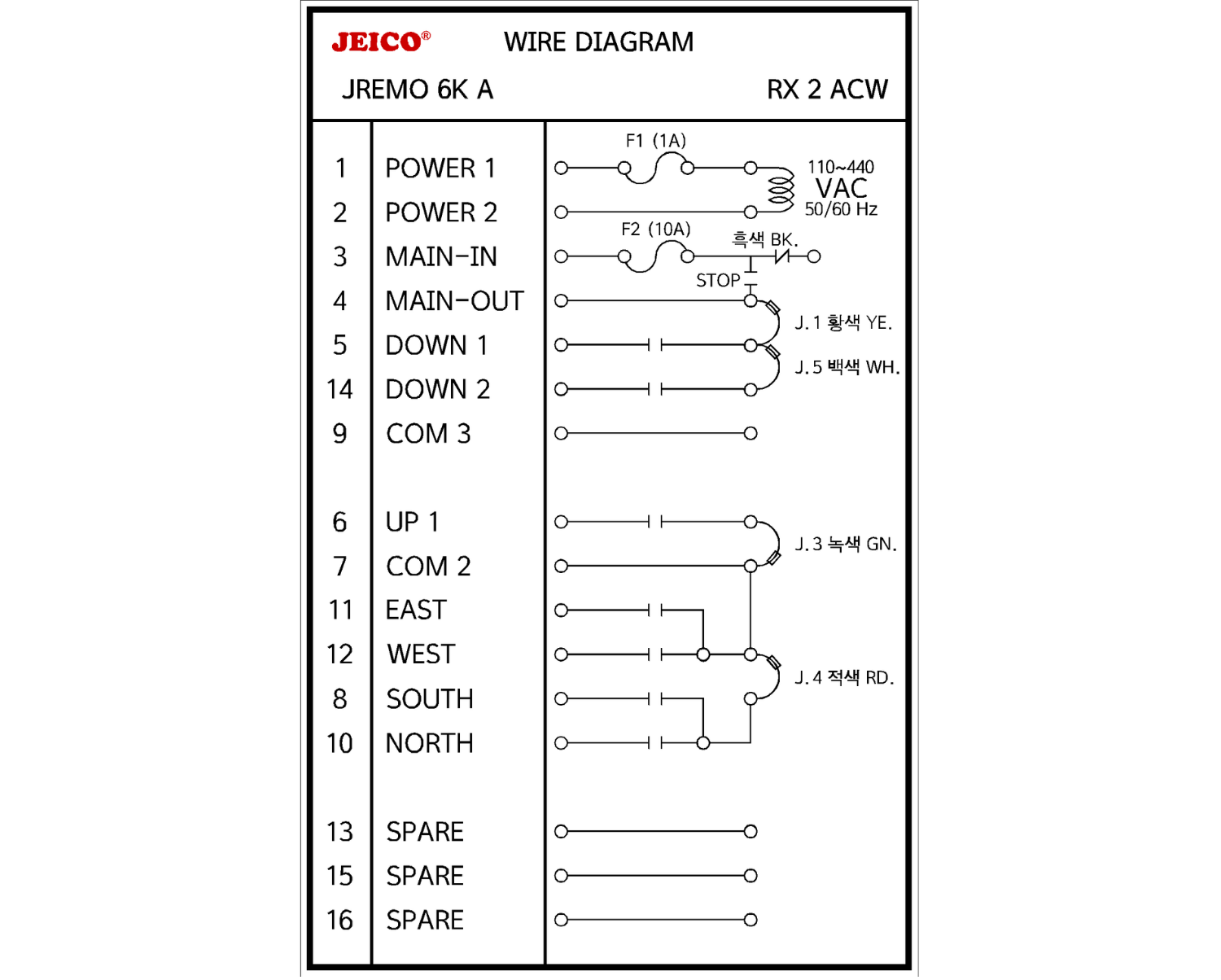

DRAWING
